Webster Systems

The MAP controllers can be provisioned with Webster firmware to create an embedded web server. No software to install.



Self-Contained Solution

The MAP (MAPMINI, MAP1 and MAP2) controllers can be provisioned with Webster firmware to create an embedded web server where the controller becomes a comlete access control solution. Just plug it into the LAN network and use a standard web browser on your PC, tablet or phone to manage the Webster system. No software to install.
Webster provides a feature set which is comparable to most host based systems and supports up to 5,000 cardholders with any Facility Codes. Unlike some embedded web servers, Webster allows multiple concurrent operators to be connected, each with their own user name and password. Webster supports standard 26, Cansec 37 and Corporate 1000 35/48 Wiegand formats for maximum flexibility. Full support is provided for Access Profiles, Access Schedules, Unlock Schedules and Holiday Schedules. Other features include First Man Rule, Unlock Privilege, Daylight Saving Time and Selective Power Door Operator activation.

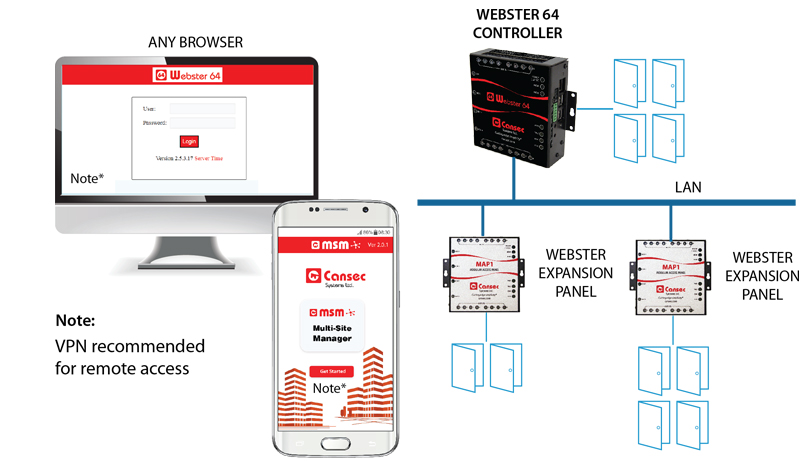

Typical Configuration

webster configuration2

  • Maximum one MAP Webster controller per system. Additional controllers are not supported
  • Start with a controller with sufficient door capacity that fits the system requirement
  • Minimal-door-capacity controller can be upgraded by purchasing a provisioning code
  • Maxed-out-door-capacity controller can be upgraded by returning the old controller for a new additional-capacity controller with a price discount
  • Maximum 8 doors per system


Readers for MAP1 2 / 4
Reader for MAPMINI 1
Readers for MAP2 2/4/6/8
Onboard Network TCP/IP Yes
Self-contained Yes
Audit Buffer (transactions) 200k
Facility Codes (FC) Unlimited
Card Capacity  5,000 with any FC or ID
Cansec 37-bit Yes
Standard 26-bit Yes
Corporate 1000 -35/48-bit Yes
Auto Void/Validate Yes
Schedule Time Resolution 1 min
Access Schedules 255
Unlock Schedules 2/4/6/8
Holiday Periods (From - To) 40
Concurrent Operators 20
Daylight Saving Time Yes
Unlock Privilege Yes
First Man Rule Yes
Door Operator Output Yes
Access Profiles Unlimited
File Export Yes
Scheduled Command Yes


Part Numbers


CA-MAP12HW   (2-Door Configuration)
CA-MAP14HW   (4-Door Configuration)
CA-MAP12U4HW  (2-Door Provisioning Upgrade to 4-Door)


CA-MAPM1HW   (1-Door Configuration)


CA-MAP22HW   (2-Door Configuration)
CA-MAP24HW   (4-Door Configuration)
CA-MAP26HW   (6-Door Configuration)
CA-MAP28HW   (8-Door Configuration)
CA-MAP22U4HW  (2-Door Provisioning Upgrade to 4-Door)
CA-MAP24U6HW  (4-Door Provisioning Upgrade to 6-Door)
CA-MAP26U8HW  (6-Door Provisioning Upgrade to 8-Door)
